versions

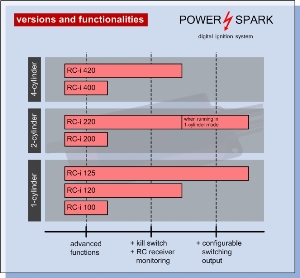

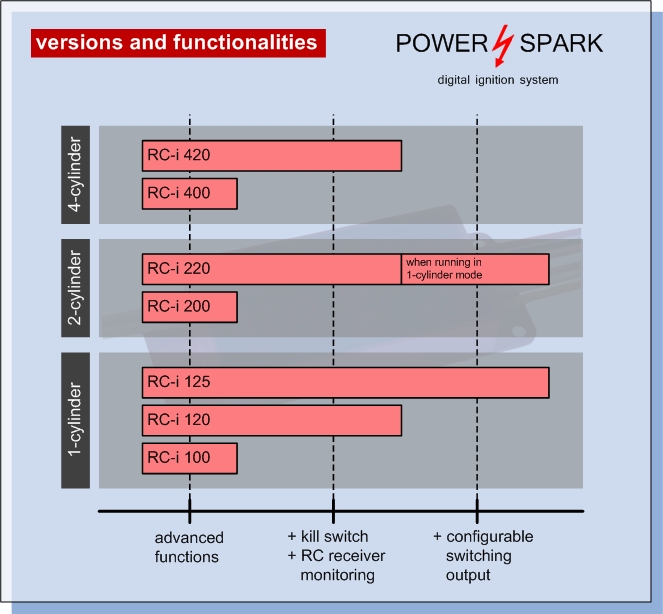

overview of versions and functionalities
 => click on picture above



prices from 25.03.2025

picture   item nr. description

price
without sensor
SE-1

POWER SPARK

  RC-i 100
CE-i 100		 1- cylinder
  ■  RC-i versions for 4-12.0 volt (not for 3s battery),
      CE-i versions for 10.5-13.0 volt (3s battery, 12V Pb battery)

149 €
**125,21€
  RC-i 120
CE-i 120 		1- cylinder with diagnostic functions
  ■  with kill switch function, RC receiver monitoring, etc.
  ■  RC-i versions for 4-12.0 volt (not for 3s battery),
      CE-i versions for 10.5-13.0 volt (3s battery, 12V Pb battery) 		 169 €
**142,02€
  RC-i 125
CE-i 125		 1- cylinder with diagnostic functions
   ■  with kill switch function, RC receiver monitoring, etc.
  ■  with configurable switching output
  ■  RC-i versions for 4-12.0 volt (not for 3s battery),
      CE-i versions for 10.5-13.0 volt (3s battery, 12V Pb battery) 		 179 €
**150,42€
  RC-i 200
CE-i 200		 2- cylinder
  ■  for twin & boxer (0/180° ign. offset)
  ■  RC-i versions for 4-12.0 volt (not for 3s battery),
      CE-i versions for 10.5-13.0 volt (3s battery, 12V Pb battery) 		 179 €
**150,42€
RC-i 220
CE-i 220		 2- cylinder with diagnostic functions
  ■  for twin & boxer (0/180° ign. offset)
  ■  RC-i versions for 4-12.0 volt (not for 3s battery),
      CE-i versions for 10.5-13.0 volt (3s battery, 12V Pb battery) 		 199 €
**167,23€

POWER SPARK

   RC-i 400
CE-i 400		 3- & 4- cylinder
  ■  for double-twin & double-boxer (0/180° ign. offset)
  ■  RC-i versions for 4-12.0 volt (not for 3s battery),
      CE-i versions for 10.5-13.0 volt (3s battery, 12V Pb battery) 		 299 €
 **251,26€
  RC-i 420
CE-i 420		 3- & 4- cylinder with diagnostic functions
  ■  for double-twin & double-boxer (0/180° ign. offset)
  ■  with kill switch function, RC receiver monitoring, etc.
  ■  RC-i versions for 4-12.0 volt (not for 3s battery),
      CE-i versions for 10.5-13.0 volt (3s battery, 12V Pb battery) 		 309 €
**259,66€
  RC-i 421
CE-i 421		 4- cylinder with diagnostic functions
  ■  for four-cylinder (90° ign. offset)
  ■  with kill switch function, RC receiver monitoring, etc.
  ■  RC-i versions for 4-12.0 volt (not for 3s battery),
      CE-i versions for 10.5-13.0 volt (3s battery, 12V Pb battery) 		 309 €
**259,66€
  RC-i 422
CE-i 422		 3- cylinder with diagnostic functions
  ■  for three-cylinder (120° ign. offset)
  ■  with kill switch function, RC receiver monitoring, etc.
  ■  RC-i versions for 4-12.0 volt (not for 3s battery),
      CE-i versions for 10.5-13.0 volt (3s battery, 12V Pb battery) 		 309 €
**259,66€

included:     ■  POWER SPARK
  ■  programming magnet
  ■  magnet for flywheel GM-1 (if no flywheel ordered)
  ■  fuse with fuse holder
  ■  english installation and operating manual

for operation of POWER SPARK necessary, when no integrated speed sensor is ordered
  SE-1 speed sensor

includes
  ■  speed sensor with 35cm cable
  ■  2x bushing   		 18,00 €
15,13 €**

All prices in bold include the german VAT of 19%.
Prices marked with ** exclude the german VAT: applicable only for NON-EU customers. Please get informed about local import taxes.





versions and functions

      version
  feature   CE-i
100		 CE-i
200		 RC-i
100		 RC-i
120		 RC-i
125		 RC-i
200		 RC-i
220		 RC-i
400		 RC-i
420		 RC-i
421		 RC-i
422
engine  number of cylinders   1 2 1 1 1 2 2 3 & 4 3 & 4 4 3
 ignition offset for multiple cylinder engines   - 0°,180° - - - 0°,180° 0°,180° 0°,180° 0°,180° 90° 120°
 constant spark energy in the complete speed & voltage range   x x x x x x x x x x x
 speed up to 30000rpm   x x x x x x x x x x x
 supply voltage   11-13V 11-13V 4-12V 4-12V 4-12V 4-12V3) 4-12V3) 4-12V3) 4-12V3) 4-12V3) 4-12V3)
 ignition starts at a minimum speed   x x x x x x x x x x x
operation  2-digit brilliant red LED display   x x x x x x x x x x x
 configuration with programming magnet   x x x x x x x x x x x
 10 pre-programmed ignition maps   x x x x x x x x x x x
 application of 5 custom ignition maps   x x x x x x x x x x x
 display of engine speed   x x x x x x x x x x x
 display of maximum engine speed   x x x x x x x x x x x
 display of total engine operation time   x x x x x x x x x x x
 2nd ignition endstage configurable as switching output
 (speed dependent or error dependent (motor shutdown))		   - x - - x x x - - - -
 free programmable speed limit   x x x x x x x x x x x
diagnosis  supervision of battery voltage   x x x x x x x x x x x
  - low voltage warning (generations of ignition misses)   x x x x x x x x x x x
  - dead battery warning, engine stop when descending threshold   x x x x x x x x x x x
 supervision of receiver servo signal   - - - x x - x - x x x
  - "KILL SWITCH" functionality   - - - x x - x - x x x
  - free definable supervision window => FAILSAFE off   - - - x x - x - x x x
 supervision of receiver battery voltage   - - - x x - x - x x x
  - low voltage warning (generations of ignition misses)   - - - x x - x - x x x
  - dead battery warning, engine stop when descending threshold   - - - x x - x - x x x
technical data  red anodized, machined aluminum housing   x x x x x x x x x x x
 waterproof housing   x x x x x x x x x x x
 dimensions without flange (length x width)   82x42 82x42 82x42 82x42 82x42 82x42 82x42 82x82 82x82 82x82 82x82
 height   18 18 18 18 18 18 18 18 18 18 18
 weight ca. [g]   ~100 ~110 ~100 ~100 ~110 ~110 ~110 ~195 ~195 ~195 ~195


3) supply voltage should be at least 9V when running multiple cylinder versions with speeds (>20000rpm)
